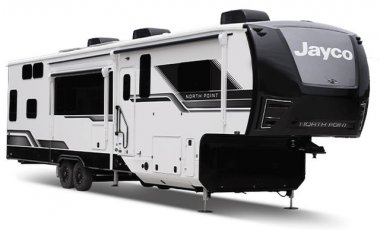

2024 North Point
Jayco designs and builds RVs with exploration in mind, so you can make memories on your own terms. The 2024 Jayco North Point offers a variety of model options ranging from 36' to just under 44'. This variety of 2024 Jayco North Point models offers a floorplan that will fit anyone's RV'ing needs. The 2024 Jayco North Point is built with the Magnum XL6 Truss Roof System and enclosed & heated underbelly with Climate Shield protection on all models. Whether you are a new or well traveled RV'er, Sicard RV has the RV to fit your lifestyle. We are a proud Jayco dealership.
Good times shared with family are often our most cherished memories. Like fine wine, those memories seem to improve with age. And the memories forged duringfamily vacations are especially powerful.
That’s probably why families often seek to re-create for their own children the special experiences they recall from their youth. That favorite ice cream shop. A great swimming hole or fishing stream. Nights by the campfire. And days just being a kid.
Jayco began as a family business and are still a family business today. Maybe that’s why they’re especially passionate about helping other families build their own special traditions. And time spent together in a Jayco RV is a great way to start.

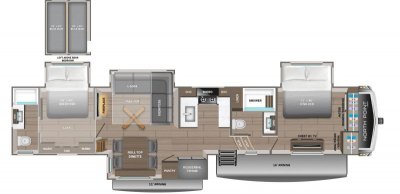

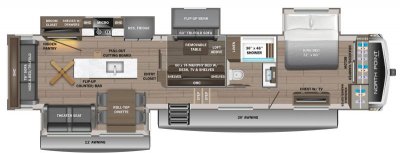

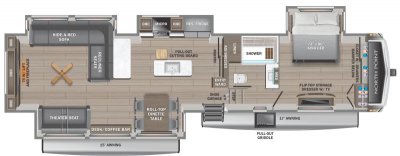

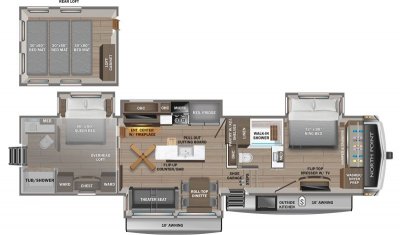

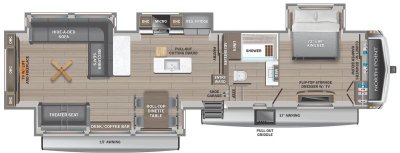

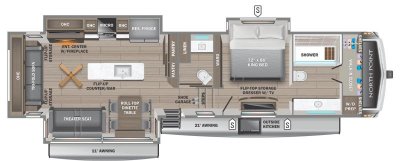

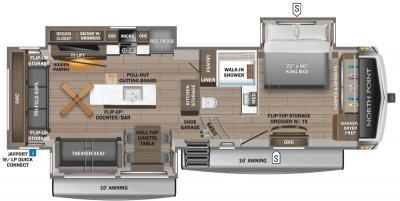

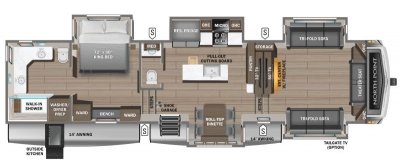

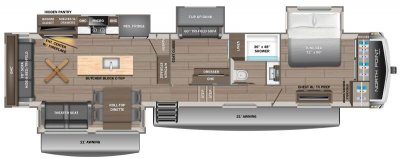

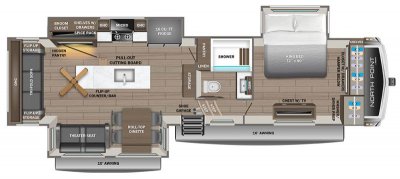

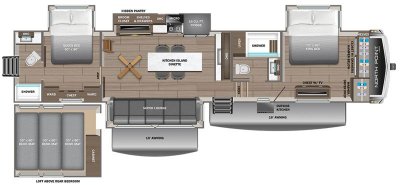

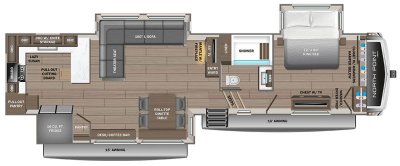

Visit Jayco WebsiteNorth Point Floorplans
Show / Hide
Special Features
Show / Hide2024 Product Information
Standards and Options
Standard Exterior Equipment
- (3) 40 lb. propane bottles with auto regulator (120 lb. max LP system)
- 102 in. wide body construction
- 12 in. structural steel I-beam with 10 in. steel drop frame
- 3,000 lb. tow hitch with 4-way pin (N/A 390CKDS)
- Battery disconnect
- Built in sewer hose carrier
- Climate Shield™ zero-degree tested weather protection:
- 40,000 BTU output furnace
- Double layer fiberglass batt insulation (roof and floor)
- Fully-enclosed and heated underbelly (ducted)
- PEX plumbing, 2 in. block foam and reflective foil
- Custom automotive-grade vinyl exterior graphics package
- Digital TV antenna with Wi-Fi extender
- Exterior marine-grade speakers with Bluetooth® controller
- Frameless, dark tinted, safety-glass windows
- Fully enclosed, universal docking center:
- Black tank flush
- Independent satellite wiring
- Quick-connect outside shower
- Selectable water connections
- Whole coach cable hookups
- Winterization and sanitation
- Inverter pre-wire to select outlets
- JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patented)
- LED exterior lighting package
- Magnum Truss™ XL6™ Roof System (strongest tested roof in the industry) with one-piece, seamless roof material with a lifetime year warranty
- Painted fiberglass front cap with clear coat and built-in specialty LED lighting
- Pass-through storage with Slam-latch™ baggage doors
- Skirt metal enclosed drop frame
- Stronghold VBL™ aluminum framed and vacuum bond laminated gelcoated fiberglass exterior walls (including rear wall and slide room end walls)
- Under-mounted spare tire
- Water heater bypass
Standard Interior Equipment
- 5/8 in. tongue-and-groove joined plywood floor decking
- Bathroom skylight
- Built-in laundry hamper in wardrobe (select models)
- P.A.P. night stands on either side of the bed
- Carbon monoxide and LP detector
- Ceiling fan (select models)
- Dual USB charging ports throughout
- Extra 120V power outlets in kitchen and slide rooms
- Flip-up countertop extension with 24 in. x 24 in. butcher block bar top (select models)
- Flip-up hidden storage in bedroom chest of drawers (select models)
- Flip-up tabletop storage next to tri-fold sofa (select models)
- Gas-strutted under-bed storage
- Handcrafted hardwood glazed doors and drawers
- JayVoice voice command system- controls lighting, A/C and furnace
- LED accent lighting above slideouts
- LED backlit custom framed mirror and medicine cabinet
- LED interior lighting throughout
- Porcelain toilet with foot flush
- Pull-out spice rack above microwave (select models)
- Pull-out utility drawer under kitchen sink
- Residential quilted bedspread and pillow shams
- Residential-grade, pull-out kitchen faucet
- “Shoe garage” in hallway step (select models)
- Soft close, heavy-duty, 75 lb. full-extension, steel ball-bearing drawer guides
- Solid hardwood slide fascia
- Stainless steel kitchen sink
- Toe kick nightlights in bedroom and bathroom
- Tri-fold hide-a-bed sofa with residential sleep surface (select models)
- True interior design (Modern Farmhouse)
- Vessel bowl sink with high rise faucet in main bathroom
- Vinyl flooring (made in the USA) throughout (includes slideout floors)
Customer Value Package (Mandatory)
- 15,000 BTU “Whisper Quiet” A/C (main)
- 15,000 BTU “Whisper Quiet” A/C (bedroom)
- 16 gal. gas/electric DSI water heater
- 50 in. 4K Smart LED HDTV with fully digital HDMI® output and two extra HDMI cables
- Backup, main entrance door and side observation security camera prep (includes a power switch in the bedroom to use the optional 7 in. monitor for security)
- Custom machined aluminum rims
- Electric patio awning with integrated LED lights
- Hidden hinges on cabinet doors
- JBL® home entertainment system with sound bar and subwoofer
- Keyed-Alike™ lock system (single key for all doors/locks)
- MORryde Safe-T-Rail grab handle
- Residential king (72 in. x 80 in.) mattress with under-bed storage
- Rooftop and ground solar prep
- Wireless remote control system (includes Bluetooth® wireless controls) with dimmer switches
5 Star Handling Package (Mandatory)
- 5 in. 16 ply 'H' rated Uniroyal tires
- Dexter® Axles with ABS and Tow Assist - includes Nev-R-Adjust® brakes and E-Z Lube® hubs
- MORryde® CRE-3000™ rubberized suspension
- MORryde® rubber pin box
- Wet bolt fasteners, bronze bushings and 4,000 lb. leaf springs
Luxury Package (Mandatory)
- 2nd electric patio awning with integrated LED lights
- 32 in. 4K Smart bedroom TV
- 6-point hydraulic auto-leveling system
- Cellular prep for 4G WiFi repeater and JAYCOMMAND® “Smart RV” system
- Central vacuum system with dust port
- Frameless dark tinted safety-glass windows
- Free-standing (no pedestal) table with leaf and (2) free-standing and (2) folding chairs
- Fresh Water Drinking System (patented) (connects to ice maker)
- GE 21 cu. ft. residential refrigerator with 1800W inverter
- GE Profile Series 30 in. residential convection microwave with built in air fryer
- GE Profile Series residential 24 in. range (3.7 cu. ft. with 9100 BTU high output burner)
- High gloss gelcoated sidewalls
- JAYCOMMAND® “Smart RV” system
- LED fireplace with electric space heater
- MORryde® StepAbove™ entrance steps with strut assist (main entrance)
- Oversized multi-battery compartment (industry leading room for 4-6 batteries)
- Privacy roller shades
- Residential solid-surface kitchen countertop with bamboo sink cover and strainer
- Residential walk-in shower with shampoo/soap holder and teak seat
- Washer/dryer prep
Overlander 4 Solar Package
- (4) 200W solar panels, (2) 100-amp/hour lithium heated batteries, 60-amp controller, 3000W inverter, DC/DC power converter, soft start power save main 15K A/C, soft start power save for bedroom 15K A/C, battery monitor, energy management system, roof pre-wire for additional solar panels, generator prep capable and heavy gauge steel battery enclosure
Overlander EXT Solar Package
- 3,000W inverter/charger with internal 50-amp transfer switch, energy management system, (6) solar panels with 200W each, (6) 100-amp/hour lithium heated batteries, 12V DC A/C in bedroom, DC to DC battery charger, 100-amp MPPT controller management, generator prep capable
Options
Show / Hide| Name | Price | Mandatory |
|---|---|---|
| Canadian Standards (CSA)(Mandatory) | N/A | |
| 20 cu. ft. 12V Refrigerator | N/A | |
| 39 in. 4K Smart TV in Cargo Area | N/A | |
| 3rd 15,000 BTU Ducted A/C | N/A | |
| 5,500W Onan® Microquiet Generator | N/A | |
| Frameless Dual Pane Tinted Safety-glass Windows | N/A | |
| Generator Prep | N/A | |
| MORryde Independent Suspension with 8K axles and Disc Brakes (ABS not available) | N/A | |
| Outside Griddle (310RLTS, 380RKGS) | N/A | |
| Queen Residential Foam Top Mattress | N/A | |
| Sani-Con® Turbo Waste Management System | N/A | |
| Slideout Awning(s) (quantity varies by model) | N/A | |
| Truma On-demand Hot Water System | N/A | |
| Wireless Backup/side View/front Entry Door Observation Kit with 7 in. Monitor | N/A |
Packages
Show / Hide| Name | Price | Mandatory |
|---|---|---|
| Customer Value Package (Mandatory) | N/A | |
| 5-Star Handling Package (Mandatory) | N/A | |
| Luxury Package (Mandatory) | N/A | |
| 7K Hydraulic Disc Brake Package (ABS N/A with disc brakes) | N/A | |
| 8K Hydraulic Disc Brake Package (ABS N/A with disc brakes) | N/A | |
| Extreme Weather Package: 120V Heated Holding Tank Pads and 12V Wrapped and Heated Fresh Water Line | N/A | |
| Overlander 2 Solar Package: 30-amp Controller, 1800W Inverter and (2) 200W Solar Panels | N/A | |
| Overlander 4 Solar Package | N/A | |
| Overlander EXT Solar Package | N/A |
