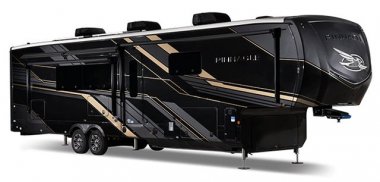

2024 Pinnacle
Jayco designs and builds RVs with exploration in mind, so you can make memories on your own terms. The 2024 Jayco Pinnacle offers a variety of model options ranging from just over 36' to just over 44'. This variety of 2024 Jayco Pinnacle models offers a floorplan that will fit anyone's RV'ing needs. The 2024 Jayco Pinnacle is built with the Magnum Truss Roof System and enclosed & heated underbelly with Climate Shield protection on all models. Whether you are a new or well traveled RV'er, Sicard RV has the RV to fit your lifestyle. We are a proud Jayco dealership.
Good times shared with family are often our most cherished memories. Like fine wine, those memories seem to improve with age. And the memories forged duringfamily vacations are especially powerful.
That’s probably why families often seek to re-create for their own children the special experiences they recall from their youth. That favorite ice cream shop. A great swimming hole or fishing stream. Nights by the campfire. And days just being a kid.
Jayco began as a family business and are still a family business today. Maybe that’s why they’re especially passionate about helping other families build their own special traditions. And time spent together in a Jayco RV is a great way to start.

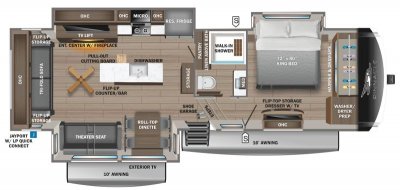

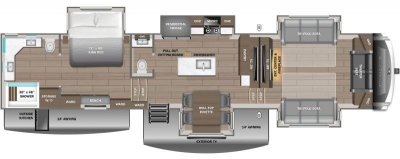

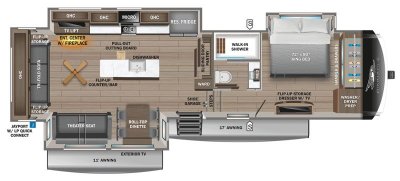

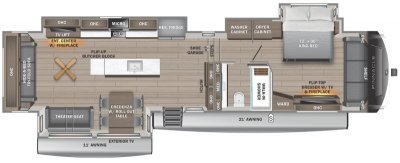

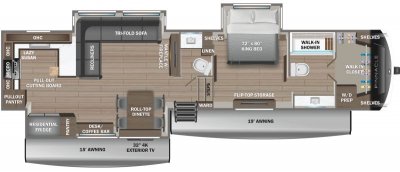

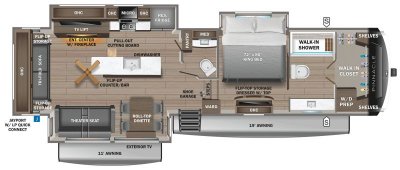

Visit Jayco WebsitePinnacle Floorplans
Show / Hide
Special Features
Show / Hide2024 Product Information
Standards and Options
Standard Exterior Equipment
- (3) 40 lb. LP propane bottles with auto regulator (120 lb. max LP system)
- 102 in. widebody construction
- 12 in. structural steel I-beam with 10 in. steel drop frame
- 120V heat blankets on all tanks plus 12V heat tape on fresh water line
- 3,000 lb. tow hitch with 4-way pin
- Battery disconnect
- Built in sewer hose carrier
- Climate Shield™ zero-degree tested weather protection:
- 40,000 BTU output furnace
- Double layer fiberglass batt insulation (roof and floor)
- Fully enclosed and heated underbelly (ducted)
- PEX plumbing, 2 in. block foam and reflective foil
- Custom automotive-grade vinyl exterior graphics package
- Digital TV antenna with Wi-Fi extender
- Exterior marine-grade speakers with Bluetooth® controller
- Frameless dark tinted safety-glass windows
- Fully enclosed, universal docking center:
- Black tank flush
- Independent satellite wiring
- Quick-connect outside shower
- Selectable water connections
- Whole coach cable hookups
- Winterization and sanitation
- Inverter pre-wire to select outlets
- JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patented)
- LED exterior lighting package
- Magnum Truss™ XL6™ Roof System (strongest tested roof in the industry) with one-piece, seamless roof material with a lifetime year warranty
- Painted fiberglass front and rear cap with clear coat and built-in specialty LED lighting
- Pass-through storage with Slam-latch™ baggage doors
- Skirt metal enclosed drop frame
- Stronghold VBL™ aluminum framed and vacuum bond laminated gelcoated fiberglass exterior walls (including slide room end walls)
- Under-mounted spare tire
- Water heater bypass
Standard Interior Equipment
- 12V charging station
- 5/8 in. tongue-and-groove joined plywood floor and 3/8 in. roof decking
- Bathroom skylight
- Built-in laundry hamper in wardrobe (select models)
- P.A.P. night stands on either side of the bed
- Carbon monoxide and LP detector
- Cedar-lined front wardrobe closet
- Ceiling fan (select models)
- Cup holders in bedroom nightstands (N/A 36SSWS)
- Extra 120V power outlets in kitchen and slide rooms
- Farmhouse stainless steel kitchen sink
- Flip-up countertop extension with 24 in. x 24 in. butcher block bar top (select models)
- Flip-up hidden storage in bedroom chest of drawers (select models)
- Flip-up tabletop storage next to tri-fold sofa (select models)
- Gas-strutted under-bed storage
- Handcrafted hardwood glazed doors, stiles, drawers and trim
- JayVoice voice command system - controls lighting, A/C and furnace
- LED accent lighting above slideouts
- LED backlit custom framed mirror and medicine cabinet
- LED interior lighting throughout
- Porcelain toilet with foot flush
- Pull-out spice rack above microwave (select models)
- Pull-out utility drawer under kitchen sink
- Residential quilted bedspread and pillows
- Residential-grade, pull-out kitchen faucet
- “Shoe garage” in hallway step (select models)
- Soft close, heavy-duty, 75 lb. full extension, steel ball-bearing drawer guides
- Solid hardwood slide fascia
- Toe kick nightlights in bedroom, bathroom and kitchen
- Tri-fold hide-a-bed sofa with sleep surface (select models)
- Vessel bowl sink with high rise faucet in main bath
- Vinyl flooring (made in the USA) throughout including slide rooms
Customer Value Package (Mandatory)
- 15,000 BTU “Whisper Quiet” A/C (bedroom)
- 15,000 BTU “Whisper Quiet” A/C with heat pump (main)
- 16 gal. gas/electric DSI water heater
- 50 in. 4K SMART LED HDTV with fully digital HDMI® output and two additional HDMI® cables
- Backup, main entrance door and side observation security camera prep (includes a power switch in the bedroom to use the optional 7 in. monitor for security)
- Custom machined aluminum rims
- Electric patio awning with integrated LED lights
- Hidden hinges on cabinet doors
- JBL® home entertainment system with sound bar and subwoofer
- Keyed-Alike™ lock system (single key for all doors/locks)
- MORryde Safe-T-Rail grab handle
- Residential king (72 in. x 80 in.) mattress with under-bed storage
- Rooftop and ground solar prep
- Wireless remote control system (includes Bluetooth® wireless interior controls) with dimmer switches
5 Star Handling Package (Mandatory)
- 5 in. 16 ply 'H' rated Uniroyal tires
- Dexter® Axles with ABS and Tow Assist - includes Nev-R-Adjust® brakes and E-Z Lube® hubs
- MORryde® LRE-4000™ rubberized suspension
- MORryde® rubber pin box
- Wet bolt fasteners, bronze bushings and 4,000 lb. leaf springs
Luxury Package (Mandatory)
- 2nd electric patio awning with integrated LED lights
- 32 in. 4K outside Smart LED TV
- 32 in. 4K Smart LED bedroom TV
- 6-point hydraulic auto-leveling system
- Cellular prep for 4G WiFi antenna and JAYCOMMAND®
- Central vacuum system with dust port
- Day/night roller shades in living room
- Frameless dark tinted safety-glass windows
- Free-standing (no pedestal) table with leaf, (2) free-standing and (2) folding chairs
- Fresh Water Drinking System (patented) for fresh drinking water at the kitchen sink and water/ice dispensers in the residential refrigerator
- GE 21 cu. ft. residential refrigerator with 1800W inverter
- GE Profile Series 30 in. residential convection microwave with built in air fryer
- GE Profile Series residential 24 in. range (3.7 cu. ft. with 9100 BTU high output burner)
- High gloss gelcoated sidewalls
- JAYCOMMAND® “Smart RV” system
- LED fireplace with electric space heater
- MORryde® StepAbove™ entrance steps (main entrance) with strut assist
- Oversized multi-battery compartment (industry leading room for 4-6 batteries)
- Powered 50-amp cord reel
- Residential solid-surface kitchen countertop with solid-surface sink covers
- Residential walk-in shower with shampoo/soap holder, teak seat and shower tower
- Solid hardwood cabinet stiles
- Washer/dryer prep
Overlander 4 Solar Package
- (4) 200W solar panels, (2) 100-amp/hour lithium heated batteries, 60-amp controller, 3000W inverter, DC/DC power converter, soft start power save main 15K A/C, soft start power save for bedroom 15K A/C, battery monitor, energy management system, roof pre-wire for additional solar panels, generator prep capable and heavy gauge steel battery enclosure
Overlander EXT Solar Package
- 3,000W inverter/charger with internal 50-amp transfer switch, energy management system, (6) solar panels with 200W each, (6) 100-amp/hour lithium heated batteries, 12V DC A/C in bedroom, DC to DC battery charger, 100-amp MPPT controller management, generator prep capable
Options
Show / Hide| Name | Price | Mandatory |
|---|---|---|
| Canadian Standards (CSA)(Mandatory) | N/A | |
| 20 cu. ft. 12V Refrigerator | N/A | |
| 3rd 15,000 BTU Ducted A/C | N/A | |
| 5,500W Onan® Microquiet Generator | N/A | |
| 7K Hydraulic Disc Brake Package (ABS N/A with disc brakes) | N/A | |
| 8K Hydraulic Disc Brake Package (ABS N/A with disc brakes) | N/A | |
| Butler’s Pantry (in place of half bath 38FLGS) | N/A | |
| Frameless Dual-pane Tinted Safety-glass Windows | N/A | |
| Front Wardrobe in Place of Front Windshield and Sofa Llounge (36SSWS) | N/A | |
| Full Body Paint- Sand, Steel and Diamond | N/A | |
| Generator Prep | N/A | |
| MORryde Independent Suspension with 8K axles and Disc Brakes (ABS not available) | N/A | |
| Outside Griddle (32RLTS, 36FBTS, 36KPTS, 36SSWS) | N/A | |
| Queen Residential Foam-top Mattress | N/A | |
| Sani-Con® Turbo Waste Management System | N/A | |
| Slideout Awning(s) (quantity varies by model) | N/A | |
| True Interior Design Choice (Modern Farmhouse or Vintage Farmhouse) | N/A | |
| Truma on-demand Hot Water System | N/A | |
| Wireless Backup/side View/front Entry Door Observation Kit with 7 in. Monitor | N/A |
Packages
Show / Hide| Name | Price | Mandatory |
|---|---|---|
| Customer Value Package (Mandatory) | N/A | |
| 5 Star Handling Package (Mandatory) | N/A | |
| Luxury Package (Mandatory) | N/A | |
| Overlander 2 Solar Package: 30-amp Controller, (1) 1800W Inverter and (2) 200W Solar Panels | N/A | |
| Overlander 4 Solar Package | N/A | |
| Overlander EXT Solar Package | N/A |
