Jayco > Redhawk SE Motorhomes > 22C
Share this page

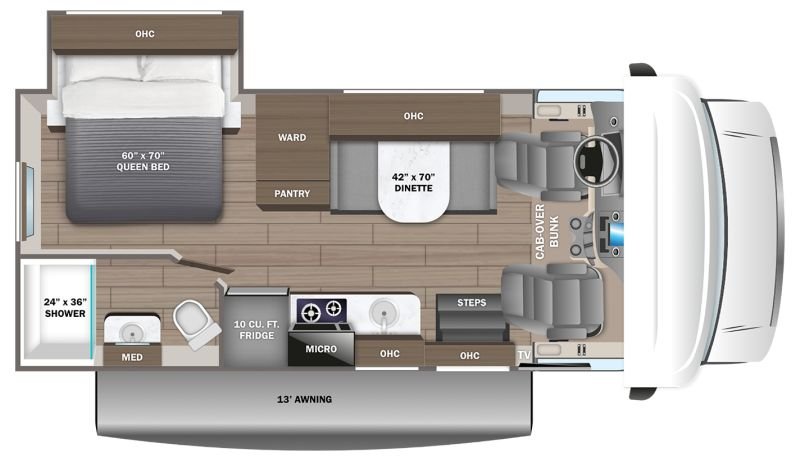

Floorplan Layout
Show / Hide
Floorplan Description
Show / HideAdditional Specs
- Gross Combined Weight Rating (lbs): 20,000
- Exterior Width (with slides out): 11'
- Interior Height (main): 7'
- Fuel Tank Capacity (gals): 57
- Exterior Storage (cu. ft.): 23
- Chassis: Chevrolet® 4500 Chassis
- Engine: 6.6L Vortec V8 401 HP engine with 464 ft.-lb. torque
- Trans: Hydra-matic 6-speed automatic transmission with overdrive
Floorplan Options
Show / Hide| Name | Price |
|---|---|
| Canadian Standards (CSA)(Mandatory) | N/A |
| Customer Value Package (Mandatory) | N/A |
| 200W Solar Panel with Dual Controller and Second House Battery | N/A |
| Automatic Hydraulic Leveling Jacks | N/A |
22C
| GVWR | 14200 lbs. |
| Shipping Weight | TBD lbs. |
| Hitch Weight | 5000 lbs. |
| Cargo Capacity | TBD lbs. |
| Exterior Length | 25'2" ft. |
| Exterior Width | 8'4" ft. |
| Exterior Height | 11'6" ft. |
| Fresh Water | 43 gal. |
| Grey Water | 40 gal. |
| Black Water | 31 gal. |
| Awning Size | 13' ft. |
| LPG | 41 lbs. |
| Tire Size | LT225/75R16E |
| Sleeping Capacity | 4-6 |
| Water Heater | TBD |
Good times shared with family are often our most cherished memories. Like fine wine, those memories seem to improve with age. And the memories forged duringfamily vacations are especially powerful.
That’s probably why families often seek to re-create for their own children the special experiences they recall from their youth. That favorite ice cream shop. A great swimming hole or fishing stream. Nights by the campfire. And days just being a kid.
Jayco began as a family business and are still a family business today. Maybe that’s why they’re especially passionate about helping other families build their own special traditions. And time spent together in a Jayco RV is a great way to start.
