Jayco > Terrain Motorhomes > 19Y
Share this page

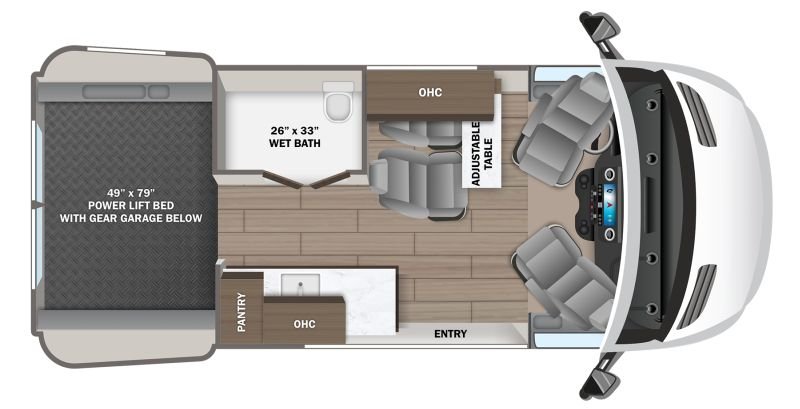

Floorplan Layout
Show / Hide
Floorplan Description
Show / HideAdditonal Specs
- Gross Combined Weight Rating (lbs): 13,950
- Interior Height (main): 6'1"
- Fuel Tank Capacity (gal): 24
- Chassis: Mercedes-Benz® Sprinter 2500 4x4 Van with 144-in. Wheelbase
- Engine: 2.0L 4-cylinder diesel engine with 211HP and 332 ft.-lb. torque
- Trans: 9-speed Automatic Transmission
Floorplan Options
Show / Hide| Name | Price |
|---|---|
| Canadian Standards (CSA)(Mandatory) | N/A |
| Customer Value Package (Mandatory) | N/A |
| 2nd 48V-165 amp hour battery with bench cover on driver-side | N/A |
| 2nd 48V-165 amp hour battery with bench cover on driver-side and addt. storage bench on pass. side | N/A |
| Driver-side rear garage storage bench | N/A |
| Driver and passenger-side rear garage storage benches | N/A |
| 400W portable solar blanket | N/A |
| Aztec Partial Paint (Silver Van Only) | N/A |
| Forest Glade Partial Paint (Sandstone Van Only) | N/A |
| Mystic Tide Partial Paint (Blue-Grey Van Only) | N/A |
19Y
| GVWR | 9050 lbs. |
| Shipping Weight | TBD lbs. |
| Hitch Weight | 5000 lbs. |
| Cargo Capacity | TBD lbs. |
| Exterior Length | 19'7" ft. |
| Exterior Width | 7'1" ft. |
| Exterior Height | TBD ft. |
| Fresh Water | 21 gal. |
| Grey Water | 21 gal. |
| Black Water | 4.8 gal. |
| Awning Size | n/a ft. |
| LPG | TBD lbs. |
| Tire Size | BFGoodrich® All-Terrain T/A® KO2® Tires |
| Sleeping Capacity | 2 |
| Water Heater | TBD |
Good times shared with family are often our most cherished memories. Like fine wine, those memories seem to improve with age. And the memories forged duringfamily vacations are especially powerful.
That’s probably why families often seek to re-create for their own children the special experiences they recall from their youth. That favorite ice cream shop. A great swimming hole or fishing stream. Nights by the campfire. And days just being a kid.
Jayco began as a family business and are still a family business today. Maybe that’s why they’re especially passionate about helping other families build their own special traditions. And time spent together in a Jayco RV is a great way to start.
