Winnebago > Ekko Transit Motorhomes > 22A
Share this page

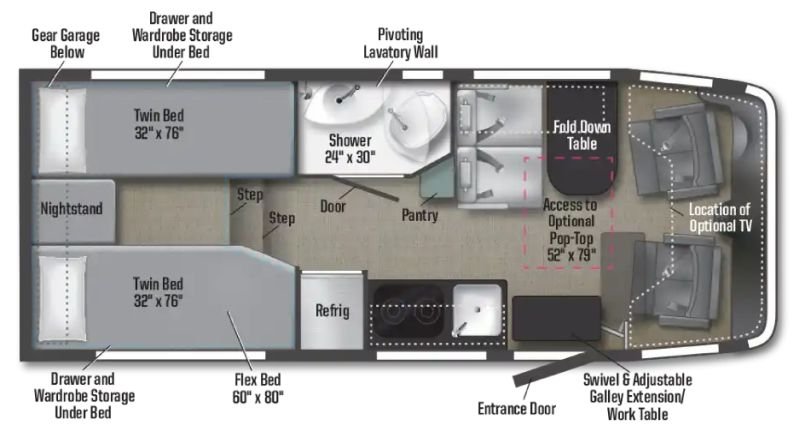

Floorplan Layout
Show / Hide
Floorplan Description
Show / HideAdditonal Specs
- Exterior Storage (cu. ft.): 65.3
- Interior Height (ft in): 6'8"
- Interior Width (ft in): 6'9"
- Fuel Capacity (gal): 31
- GCWR (lbs): 15,000
- GAWR - Front (lbs): 4,630
- GAWR - Rear (lbs): 7,275
- Wheelbase (in): 156"
- Cassette Toilet Capacity (gal): 5
Chassis
- Chassis: Ford® AWD Transit Chassis
- Engine: 3.5L EcoBoost® V6 gas engine
- Transmission: 10-speed automatic Selectshift® transmission with overdrive
Floorplan Options
Show / Hide| Name | Price |
|---|---|
| CSA (Canadian Standards) | N/A |
| Entertainment system smart Blu-ray™ disc player, Bluetooth® soundbar and 24" HDTV | N/A |
| Front cab air mattress 30" x 65" w/support base, cordless pump, repair kit and storage bag | N/A |
| Pop-top sleeping area w/FROLI® sleep system and 110V/USB charging ports (N/A with certain items) | N/A |
| Batwing awning | N/A |
| Luggage rack (N/A w/pop-top) | N/A |
| Exterior kitchen w/chest style 12V refrigerator/freezer, 2-burner LP cooktop (N/A w/pop-top) | N/A |
| Option to remove: Powered patio awning w/LED lighting and Bluetooth control | N/A |
| Option to remove: Exterior graphics | N/A |
| Option to remove: Cummins Onan QG 2,800i gas generator | N/A |
| Add (1) additional 320-amp-hour Lithionics® lithium ion battery (Generator delete mandatory) | N/A |
22A
| GVWR | 11000 lbs. |
| Shipping Weight | TBD lbs. |
| Hitch Weight | 5000 lbs. |
| Cargo Capacity | TBD lbs. |
| Exterior Length | 23' ft. |
| Exterior Width | 7'2.5" ft. |
| Exterior Height | 10'6" ft. |
| Fresh Water | 50 gal. |
| Grey Water | 51 gal. |
| Black Water | n/a gal. |
| Awning Size | 13' ft. |
| LPG | 40 lbs. |
| Tire Size | TBD |
| Sleeping Capacity | 4 |
| Water Heater | Continuous |
